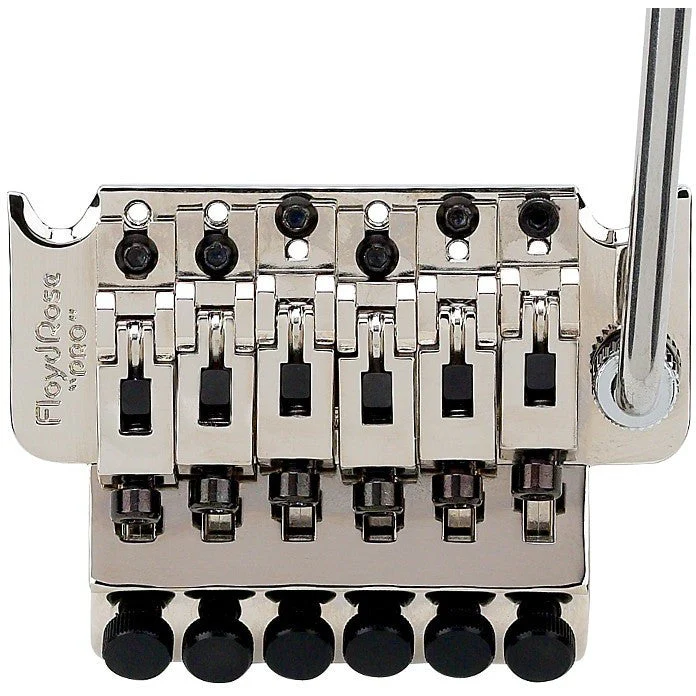

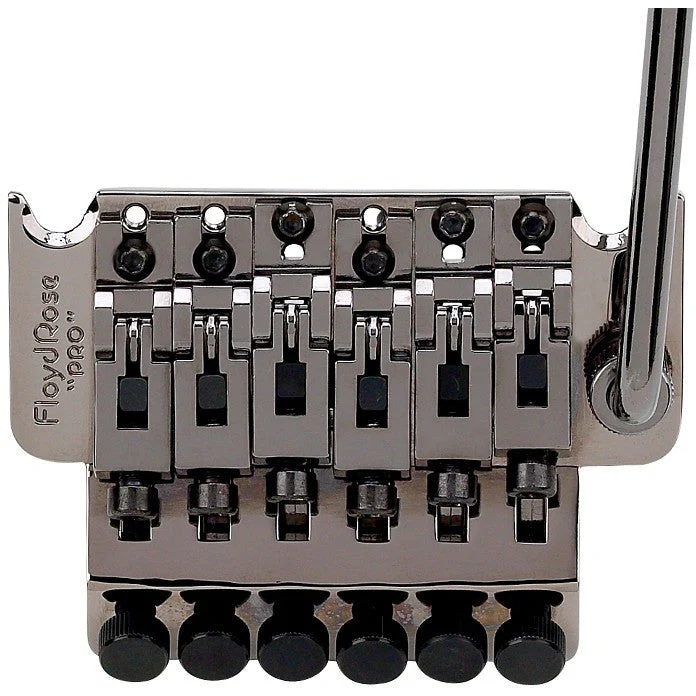

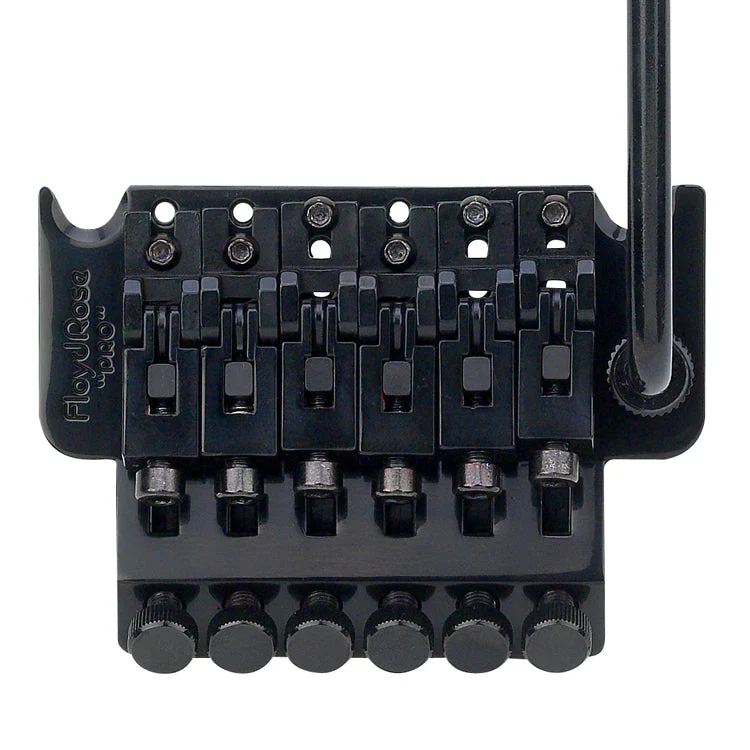

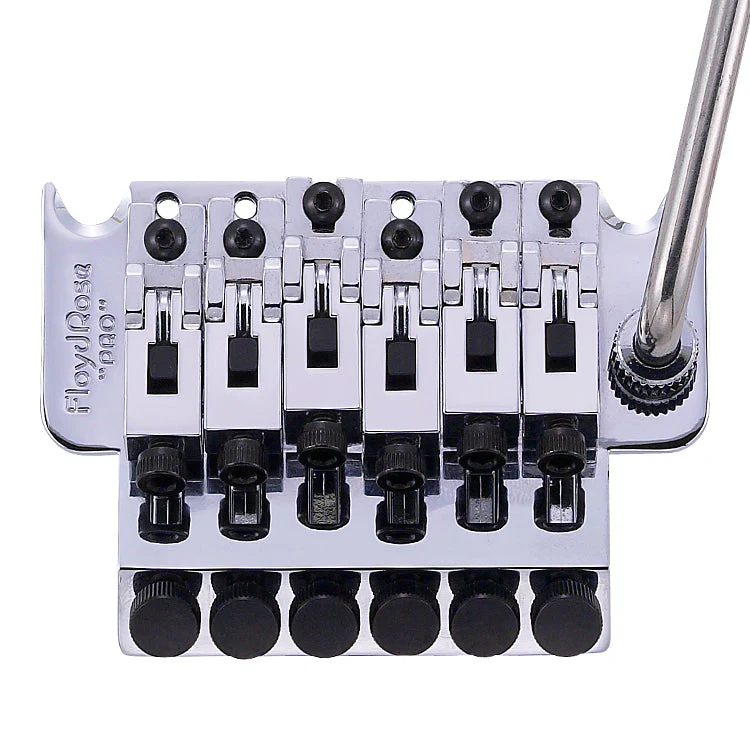

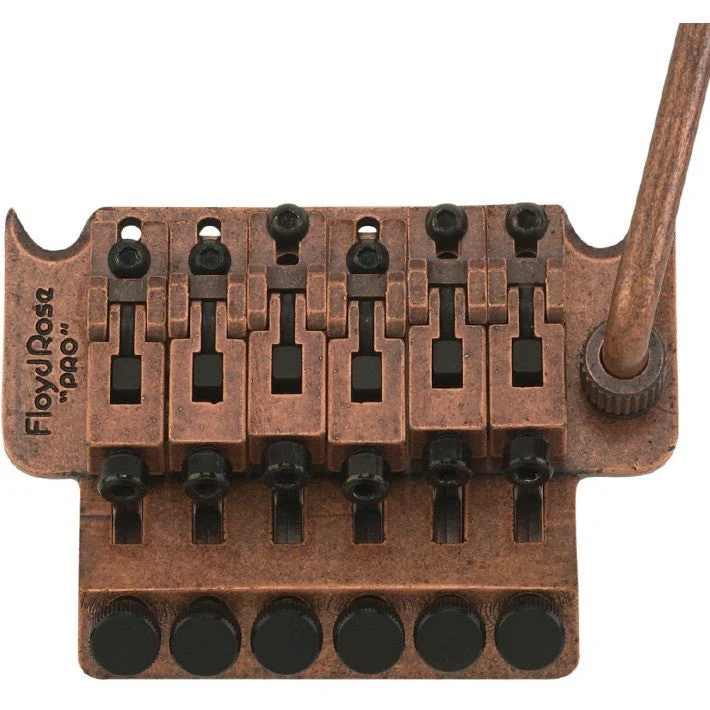

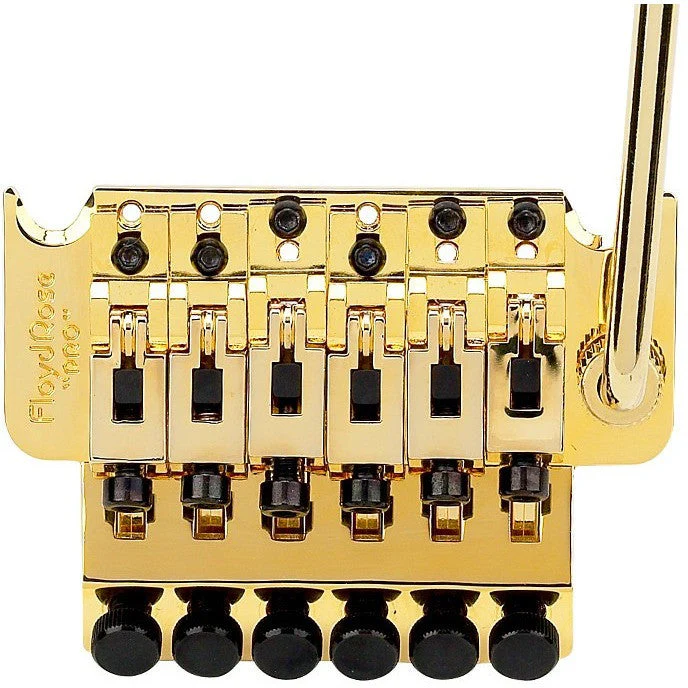

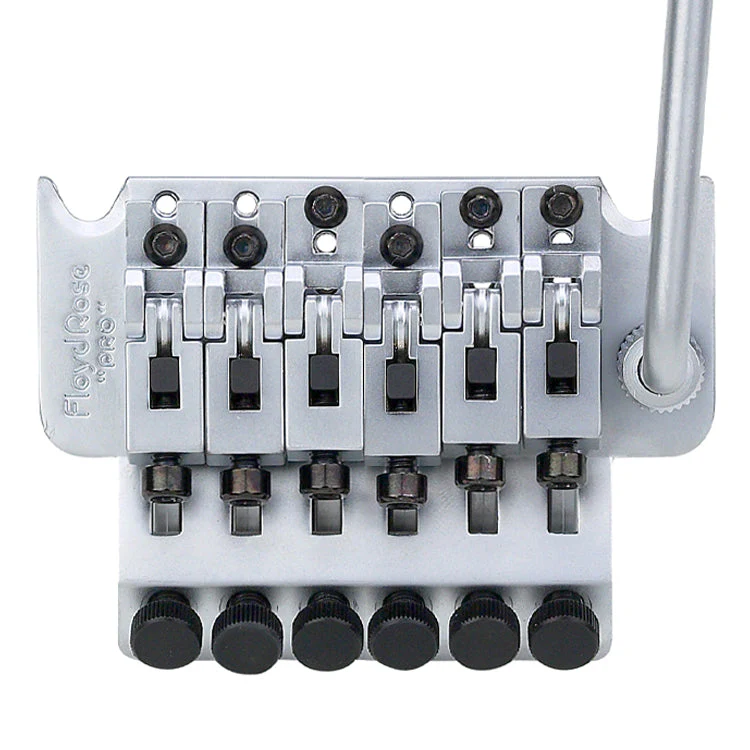

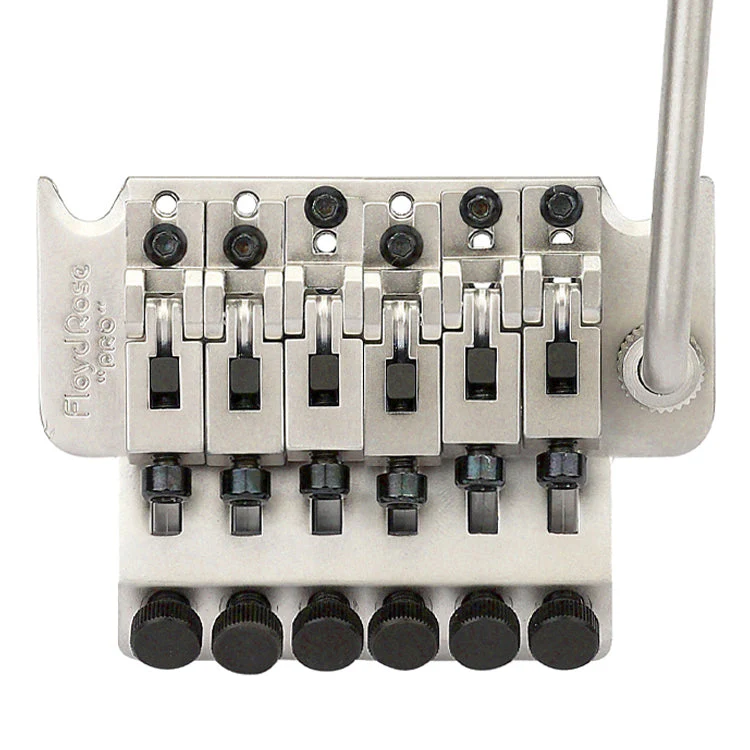

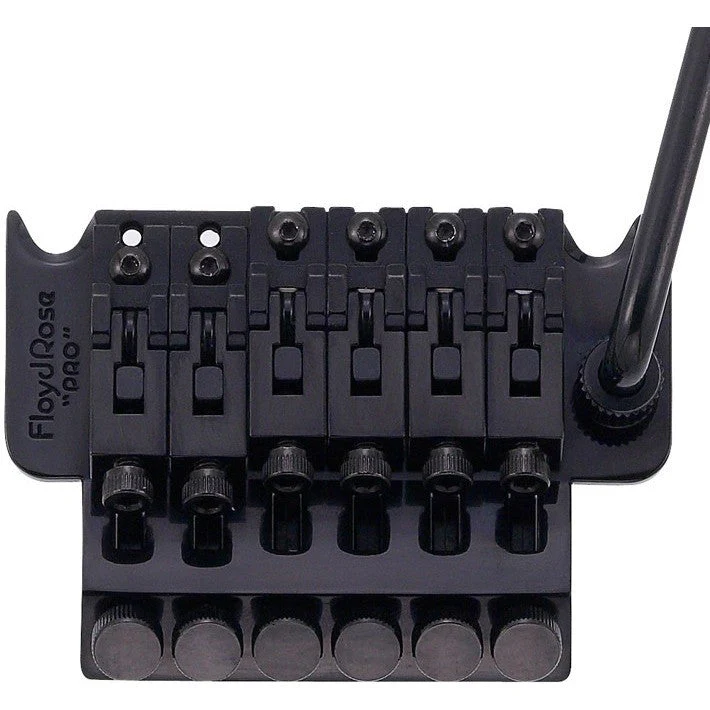

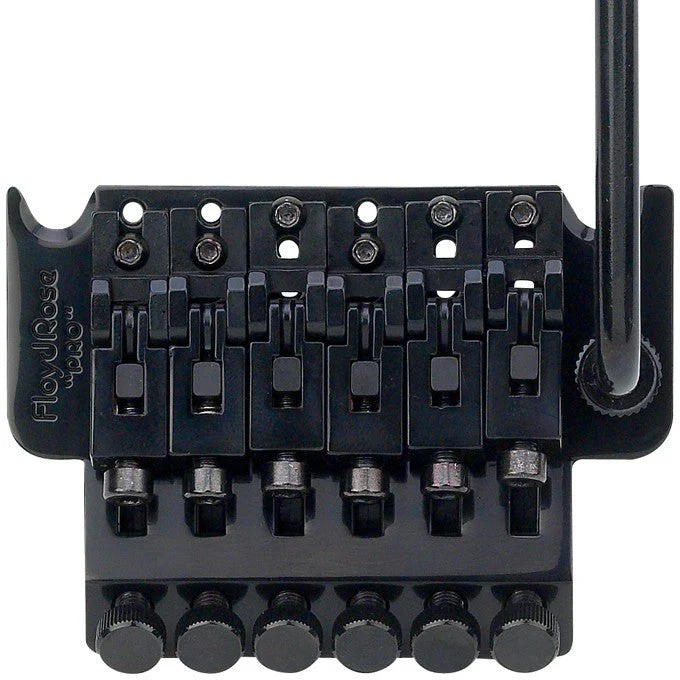

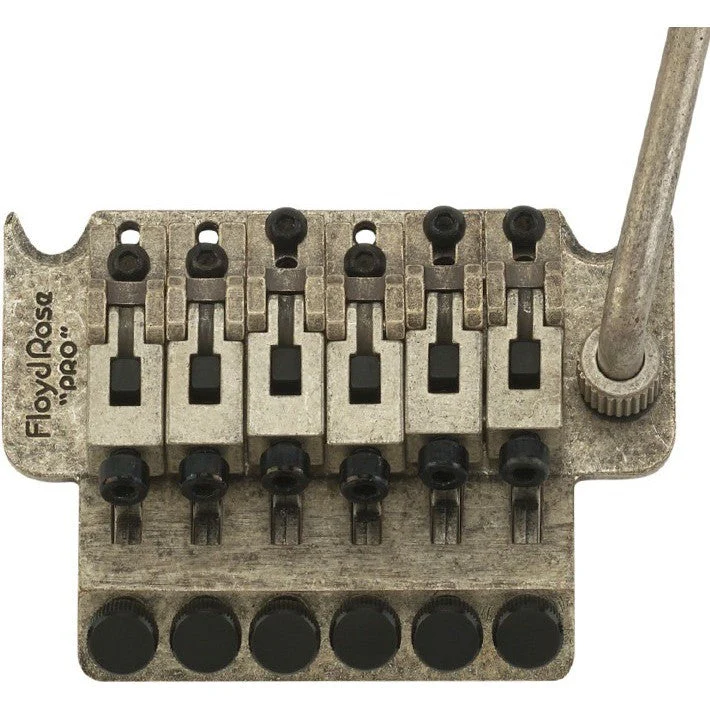

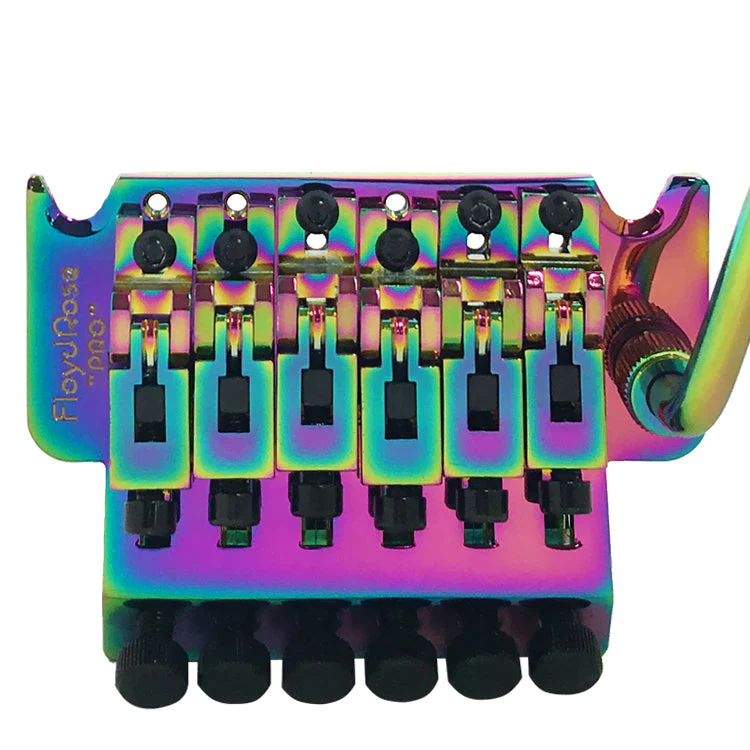

1000 Series Pro Tremolo System

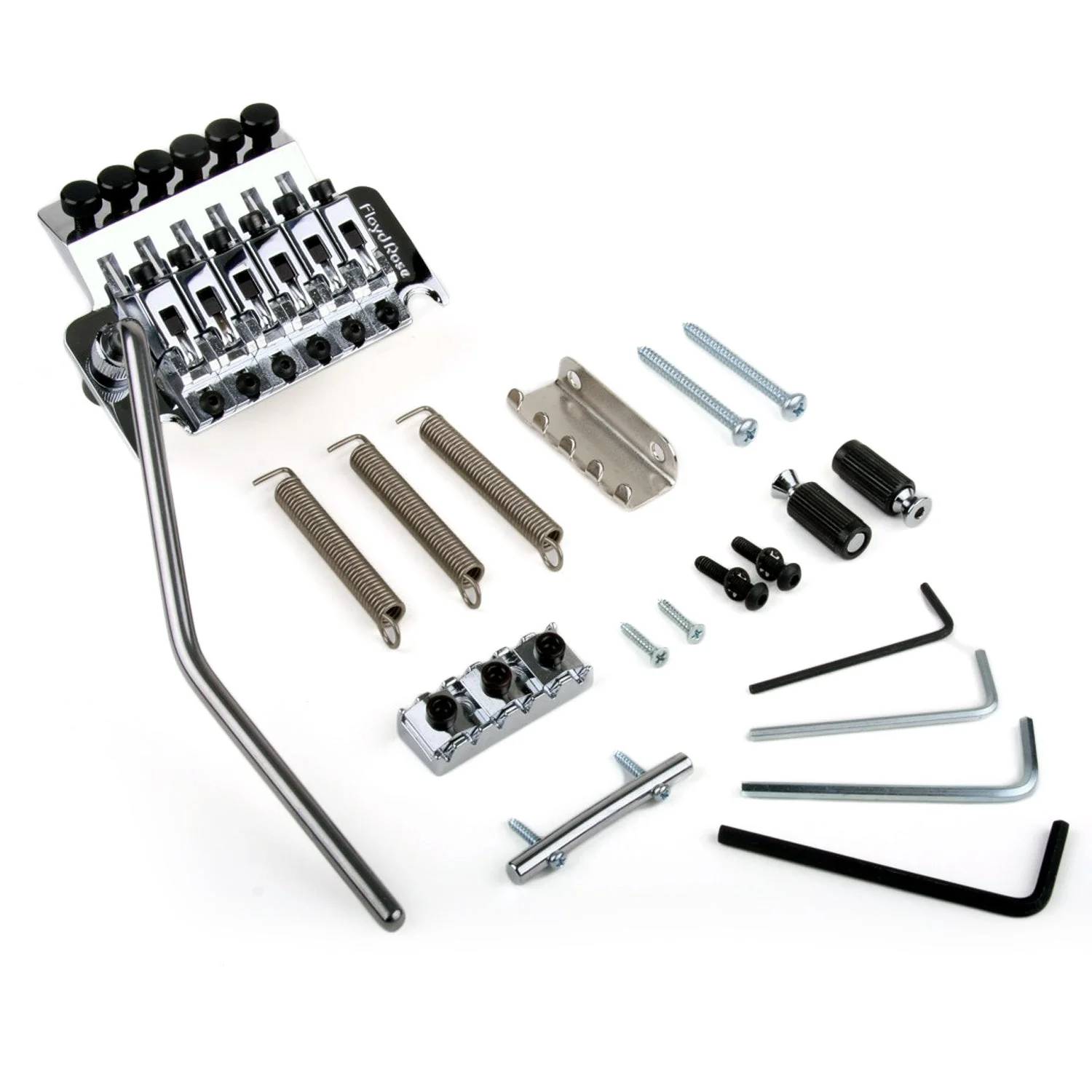

The low-profile version of the classic Original tremolo, the 1000 Series Pro features the same string spacing as the Floyd Rose Original (.420") whereas the German Pro has a narrower spacing.  Available in a variety of nut sizes that will fit practically any electric guitar, the tremolo kit contains the bridge, springs & claw, mounting studs, and all hardware necessary for installation. Locking nut sold separately.

Note: As a low-profile tremolo system, the 1000 Pro requires a route to accommodate a floating setup. The route is slightly different than that of an Original-style tremolo, so if you are replacing an existing tremolo system, you may need to modify the cavity to fit it. Please see the dimensions at the links below.

For tremolo dimensions, please see the PDF here.

Routing diagrams: PDF

Specifications
Base Plate	Hardened steel
Saddles	Hardened steel
Tremolo block	37mm nickel-plated brass
Tremolo arm	New-style (screw-on cap) | Stainless steel
String Retainer	Hardened steel
Screws	Hardened steel
Springs	Coiled steel
Bridge Radius	12"



Made in Korea.
